Specifications |
|||
| - Capability of monitor arm from 6.6 lbs. to 17.6 lbs. | ||||
|
- Meets VESA standard |
||||
|
(Video Electronics Standards Association), |
||||
| two mounting plates specs are provided : | ||||
| 3" x 3" (75 mm x 75 mm) and 4" x 4" (100mm x 100mm) | ||||
| - Screen pivots 180 degrees up or down. | ||||
| (upward 90 degrees & downward 90 degrees) | ||||
| - Screen pivots 180 degrees front or back. | ||||
- Screen pivots 270 degrees left or right. Maximum extension form the wall: 22 1/2 " |
||||
|
|
||||
|
Descriptions |
Standard Colors | |||

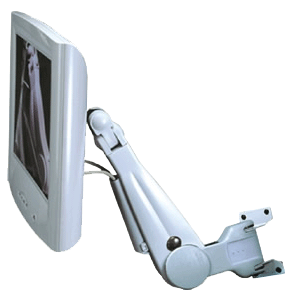

| - Wall Mount Type |  |
 |
||
| - Gas Spring Mechanism | ||||
| - Holds the screen in any position without the need for | ||||
| knobs or levers. | Black | Gray | ||
| - Adjusts the screen to the most comfortable | ||||
| viewing angle | ||||
| - Adjusting knob offers the different weight needs. | ||||
| - Arms provide up and down, left and right, front and | ||||
|
back pivot and tilting capability. |
||||
| - Provides clockwise direction and counter | ||||
| clockwise rotation of the arm. | ||||
| - Fix to any place of the wall to diversify view angles. | ||||
| - Firmly fix on solid wall. | ||||
| - Cable management helps organizing cables neat | ||||
